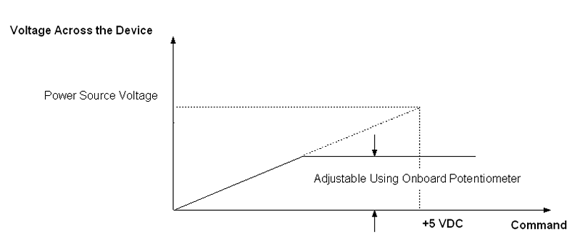

PWM520 Module is designed to enable the user to vary the voltage across a solenoid or other devices. The Pulse Width Modulation (PWM) is proportional to the input control current. The maximum pulse width could be adjusted using an onboard trim potentiometer. The range of the control current is 4 to 20 milli-amperes. This module is used for propotional control of solenoids or similar devices. |
|
|
|
Parameter |
Min |
Typical |
Max |
Units |
|
Supply Input Voltage |
9 |
|
50 |
VDC |
|
Peak Current |
|
|
15 |
A |
|
RMS Current * |
|
4 |
A |
|
|
Command (Trigger) Range |
4 |
|
20 |
mA |
|
Operating Temperature |
0 |
|
50 |
Deg C |
|
Storage Temperature |
-40 |
|
125 |
Deg C |
|
PWM Frequency |
2 |
KHz |
