E-66-38
Tubular Electromagnet

0.38" DIA X 0.66" L
(9.6 mm X 16.7 mm)


E-66-38

E-66-75
Tubular Electromagnet

0.75" DIA X 0.66" L
(19.1 mm X 16.7 mm)


E-66-75

E-77-82
Tubular Electromagnet

0.82" DIA X 0.77" L
(20.8 mm X 19.6 mm)


E-77-82

E-66-100
Tubular Electromagnet

1.00" DIA X 0.66" L
(25.4 mm X 16.7 mm)


E-66-100

E-20-100
Tubular Electromagnet

1.00" DIA X 1.94" L
(25.4 mm X 49.3 mm)


E-20-100

E-05-125
Tubular Electromagnet

1.25" DIA X 0.50" L
(31.9 mm X 12.7 mm)


E-05-125

E-09-150
Tubular Electromagnet

1.50" DIA X 0.87" L
(38.1 mm X 22.1 mm)


E-09-150

E-22-150
Tubular Electromagnet

1.50" DIA X 2.15" L
(38.1 mm X 54.6 mm)


E-22-150

E-28-150
Tubular Electromagnet

1.50" DIA X 2.81" L
(38.1 mm X 71.4 mm)


E-28-150

E-16-260
Tubular Electromagnet

2.63" DIA X 1.56" L
(66.8 mm X 39.6 mm)


E-16-260

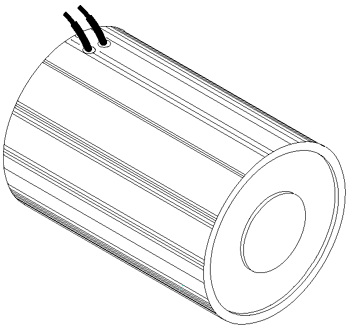

E-40-300
Tubular Electromagnet

3.00" DIA X 4.00" L
(76.2 mm X 101.6 mm)


E-40-300
